Westbourne Cabinet Pull

Sale price£138.00 GBP

VAT included.

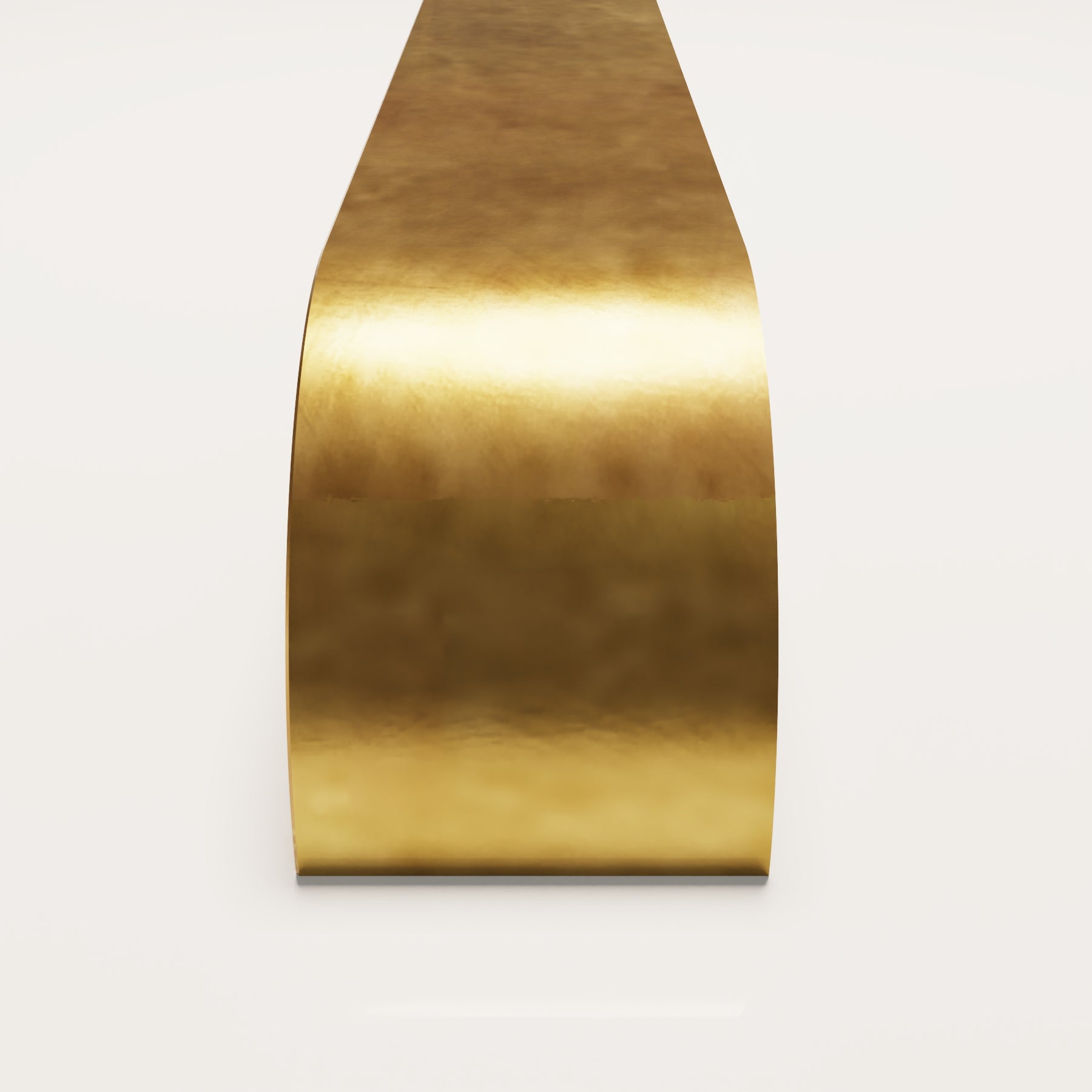

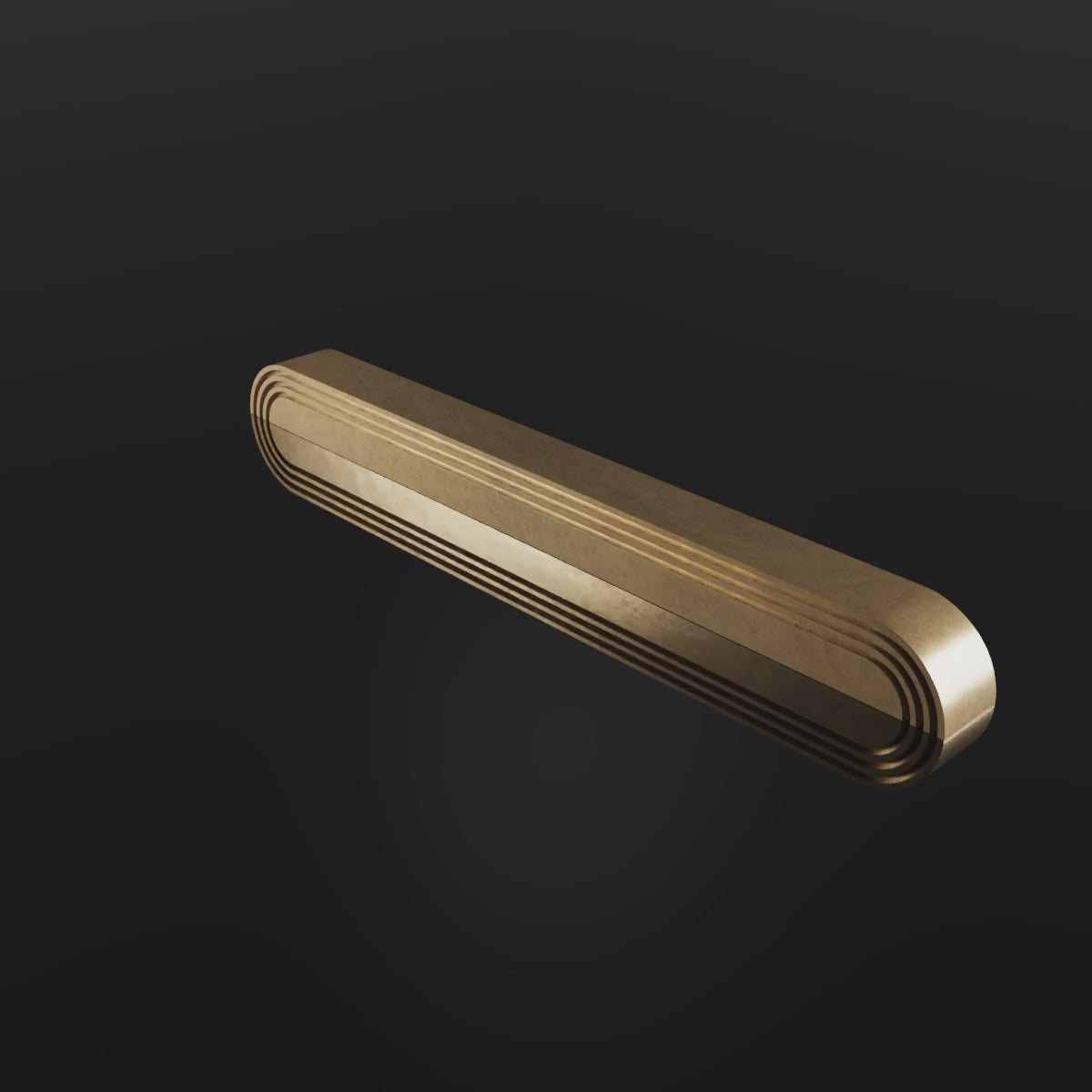

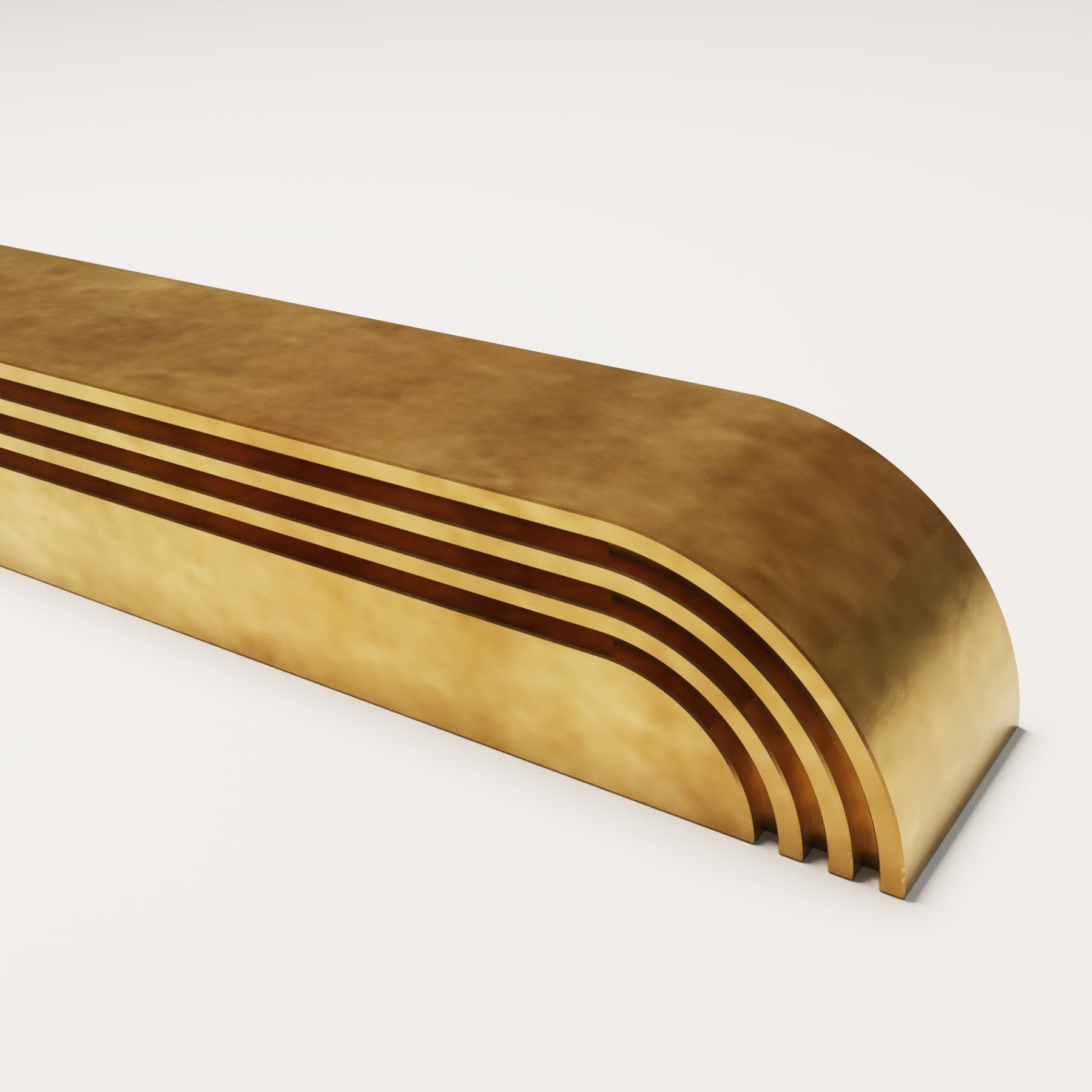

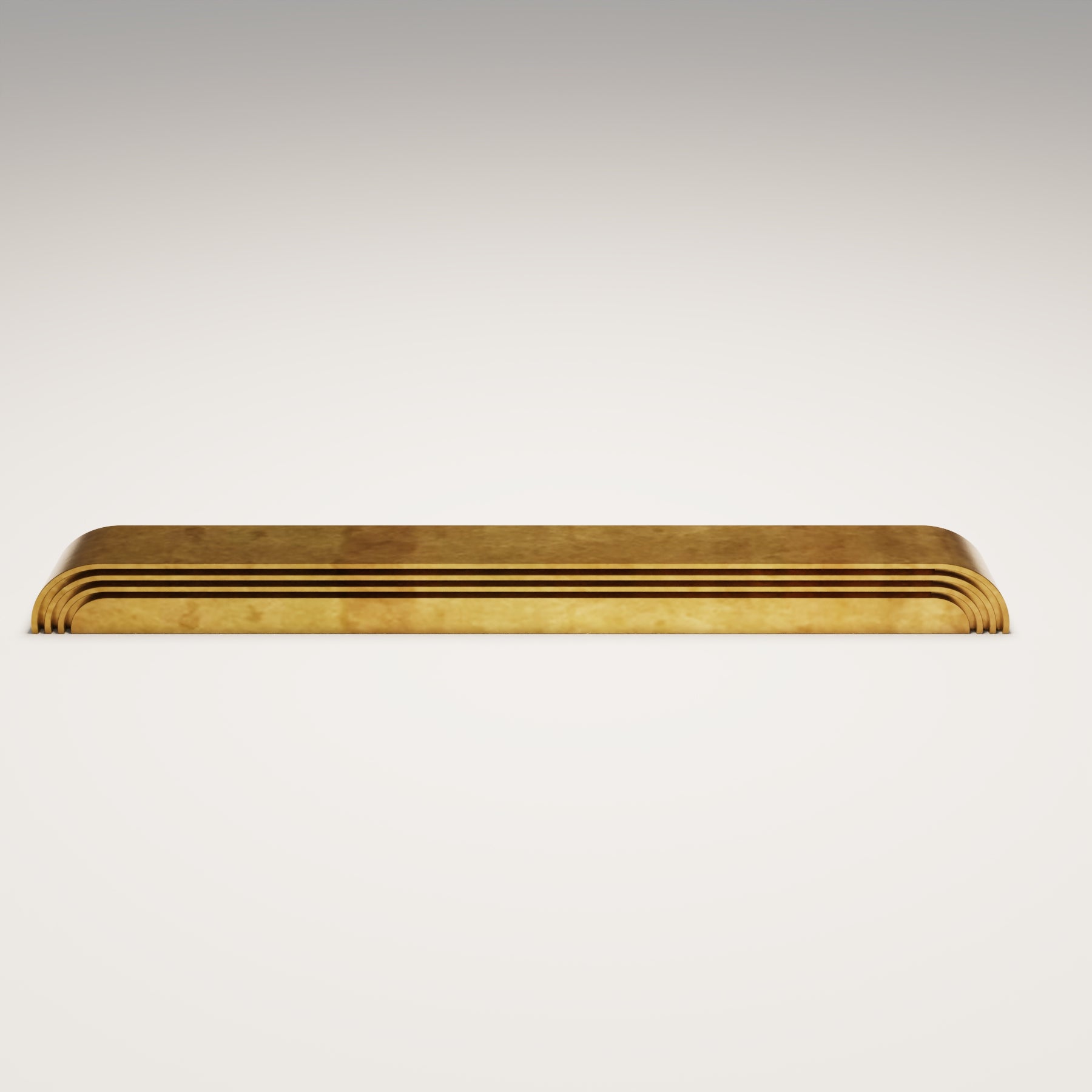

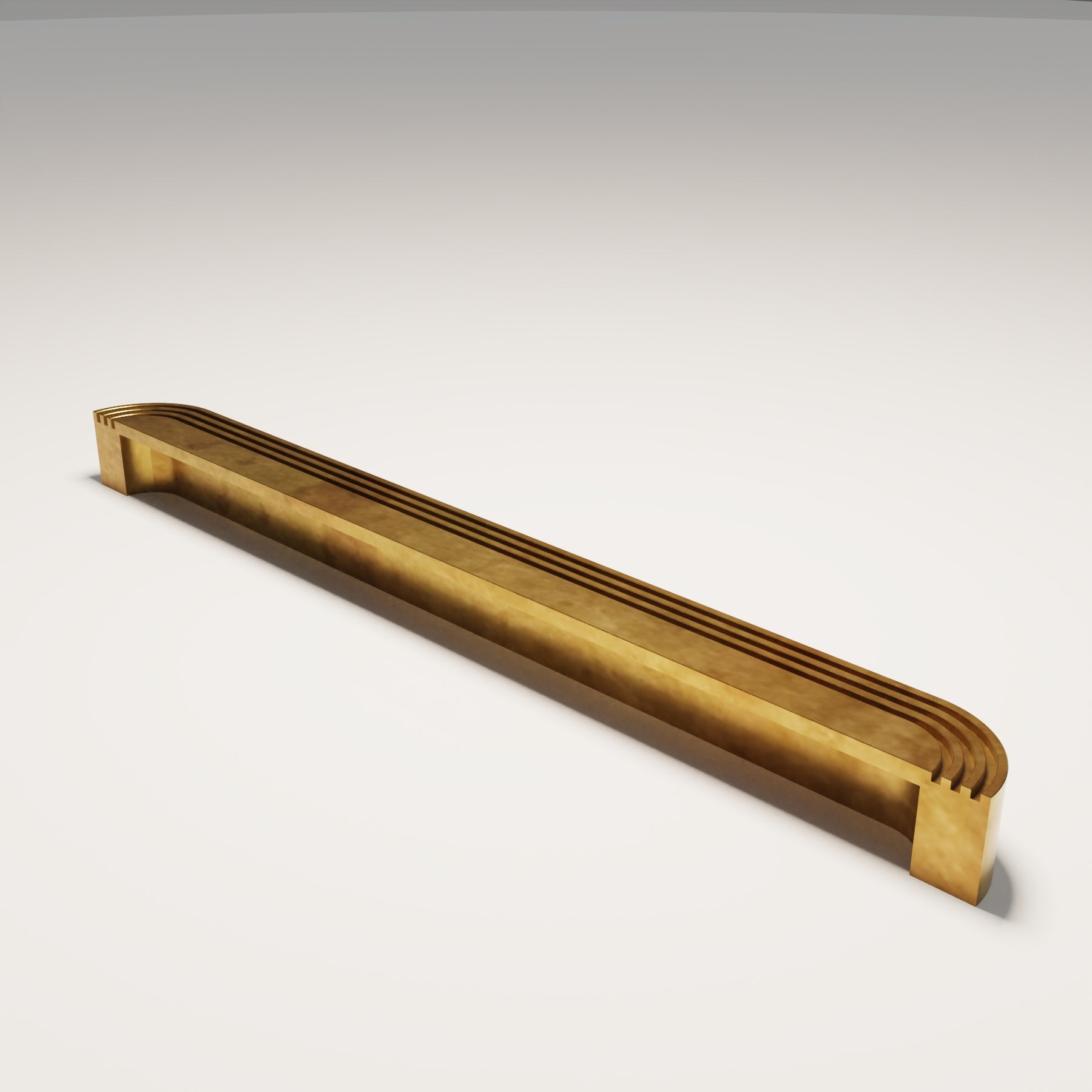

Capramont & Co’s Westbourne Cabinet Pull is the front-mounted pull in the Westbourne collection, designed for Art Deco & Linear Deco cabinetry. Its low rectangular body, softened ends and triple linear groove create a crisp Deco shadow line across drawer fronts and cabinet doors. Made to order in England.
Displayed prices apply to Heritage finishes and update with the selected size and finish. Atelier materials are available through the corresponding Atelier listing or project quotation.
Size (mm):

Size (mm)

Heritage Finish:

Heritage Finish

SKU: WES/CP/92/AGB

The Capramont Project Process

From specification to tracked delivery.

Specification Collection sizes · custom where required · no minimum order
Finish Sign-Off Physical or digital approval before production
Production Scheduled Dispatch date confirmed
Progress Updates Milestone emails through manufacture
Final Inspection Checked against approved specification · record issued
Tracked Delivery Carrier tracking through delivery

Private customer or general enquiry? Contact us

Heritage solid-brass specification

Specification

Manufactured by Capramont & Co in England, the Westbourne Cabinet Pull is a cabinet handle for slab, slim-frame shaker and fluted / ribbed fronts. Available in 6 size options, with centres of 92, 124, 156, 220, 284 and 364 mm and overall lengths of 114, 146, 178, 242, 306 and 392 mm. Heritage finish and selected Atelier material routes are available. Projection, section and detailed fitting dimensions are provided in the linked technical sheet.

Westbourne Cabinet Pull is made to order in England in solid brass for kitchens, wardrobes, whole-home joinery, hospitality and bespoke fitted interiors.

Confirm sizes, fixing centres where applicable, projection, finish, quantities and fixing conditions within one approved specification before production.

For hotels, coastal homes, yacht interiors, humid spaces, high-use joinery or other specialist material requirements, review the corresponding Atelier Performance Materials version.

Available sizes
114 mm overall / 92 mm centres
146 mm overall / 124 mm centres
178 mm overall / 156 mm centres
242 mm overall / 220 mm centres
306 mm overall / 284 mm centres
392 mm overall / 364 mm centres
Projection
24 mm for the 114 mm, 146 mm, 178 mm, 242 mm, 306 mm and 392 mm overall sizes.
Bar section
24 mm profile height for the 114 mm, 146 mm, 178 mm, 242 mm, 306 mm and 392 mm overall sizes.
Fixings
Rear-fix; M5 machine screws supplied (M6 appliance screws where required). Confirm cabinet-front thickness and final screw length before installation.
Material
Solid brass
Origin
Made to order in England
Lead time
Heritage finishes are typically made to order in 4–6 weeks after specification and finish approval. Custom requirements are confirmed individually; Atelier materials are typically 6–8 weeks. Courier transit is additional.

Technical documents

Heritage materials & finishes

This product page covers the Heritage specification: precision-machined solid brass with a decorative finish selected for its visual character and approved before made-to-order production.

For a coordinated kitchen, wardrobe, whole-home or hospitality schedule, approve the physical finish reference across the complete hardware package before manufacturing begins. Natural variation and the way a finish develops in use should form part of the design decision.

Heritage

Base material: Solid brass

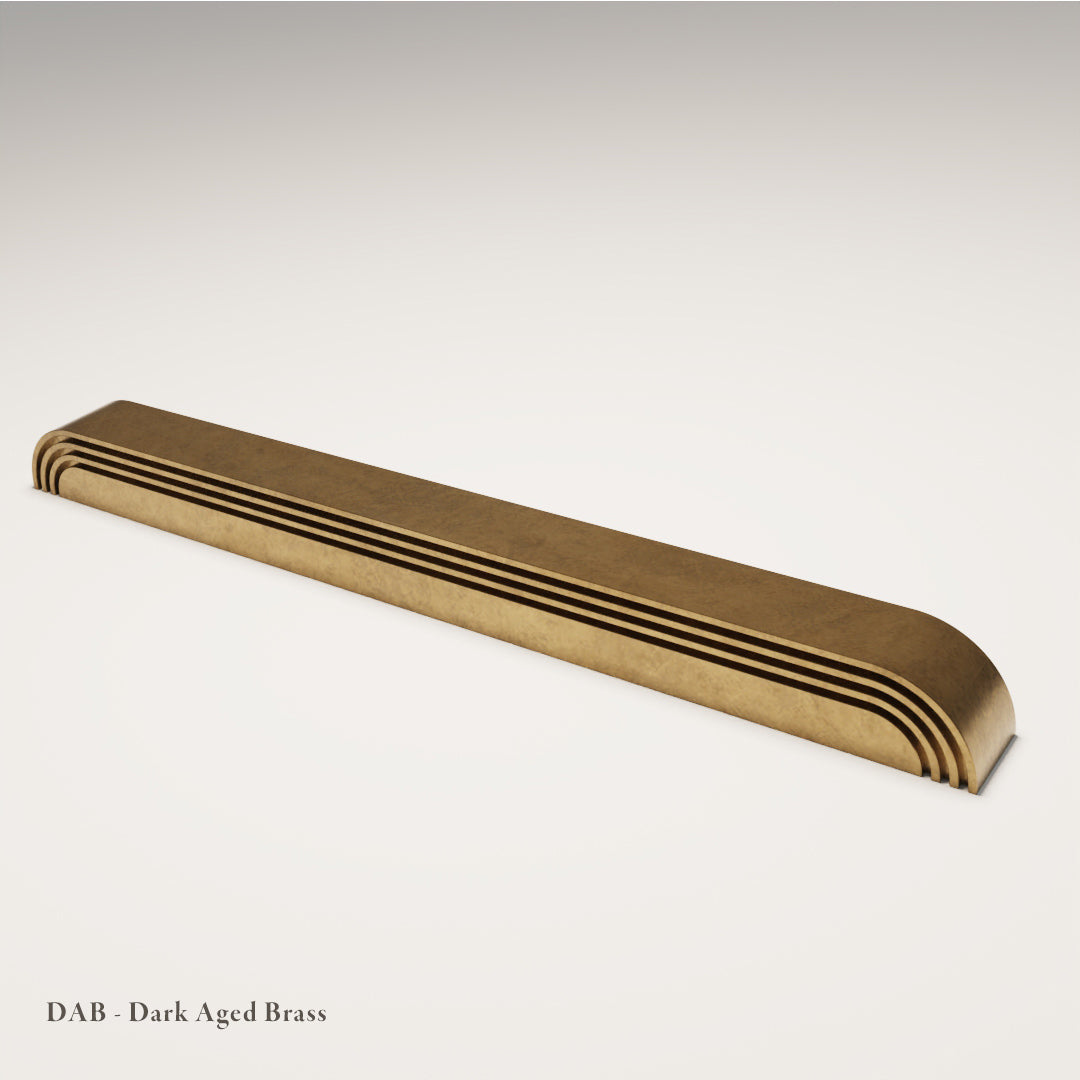

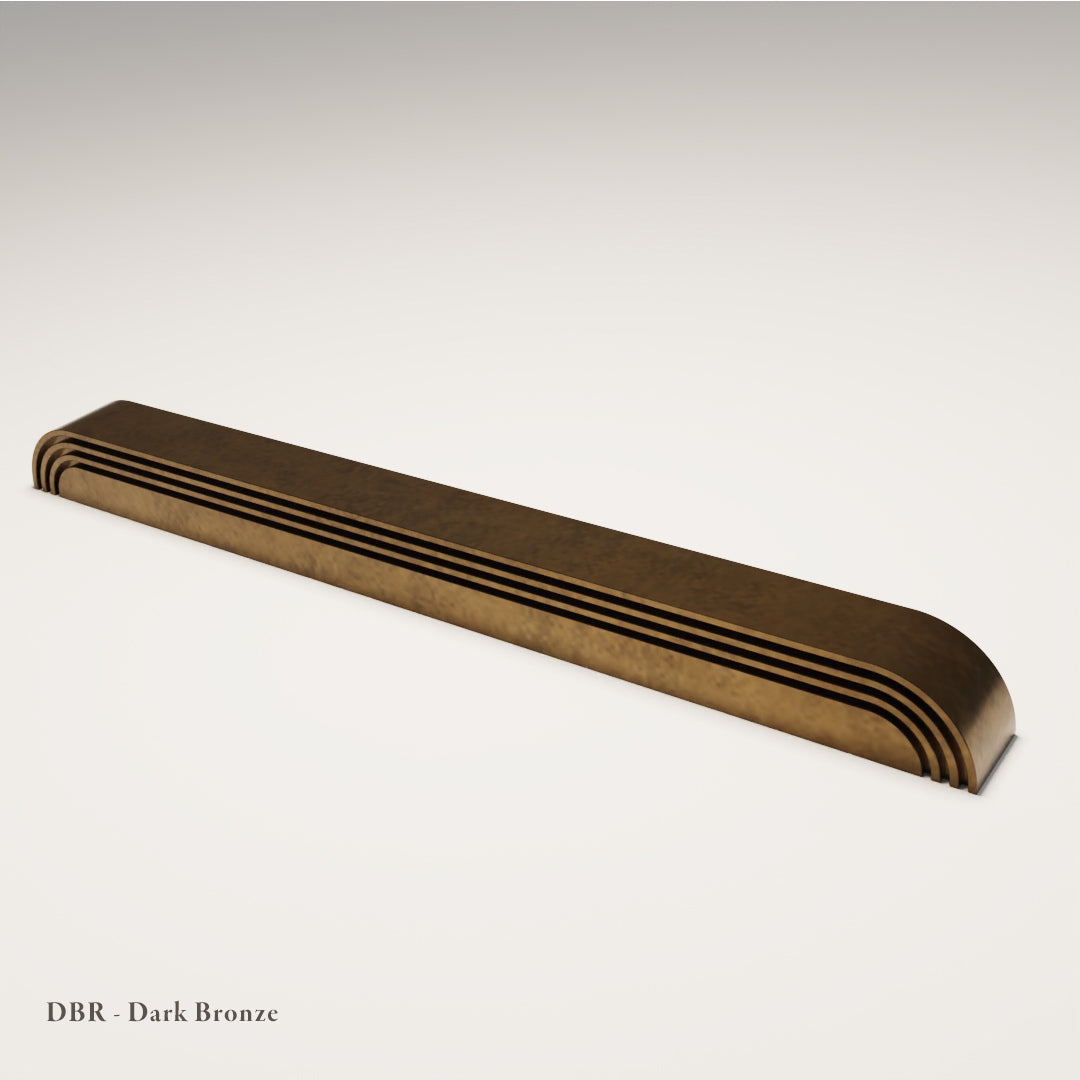

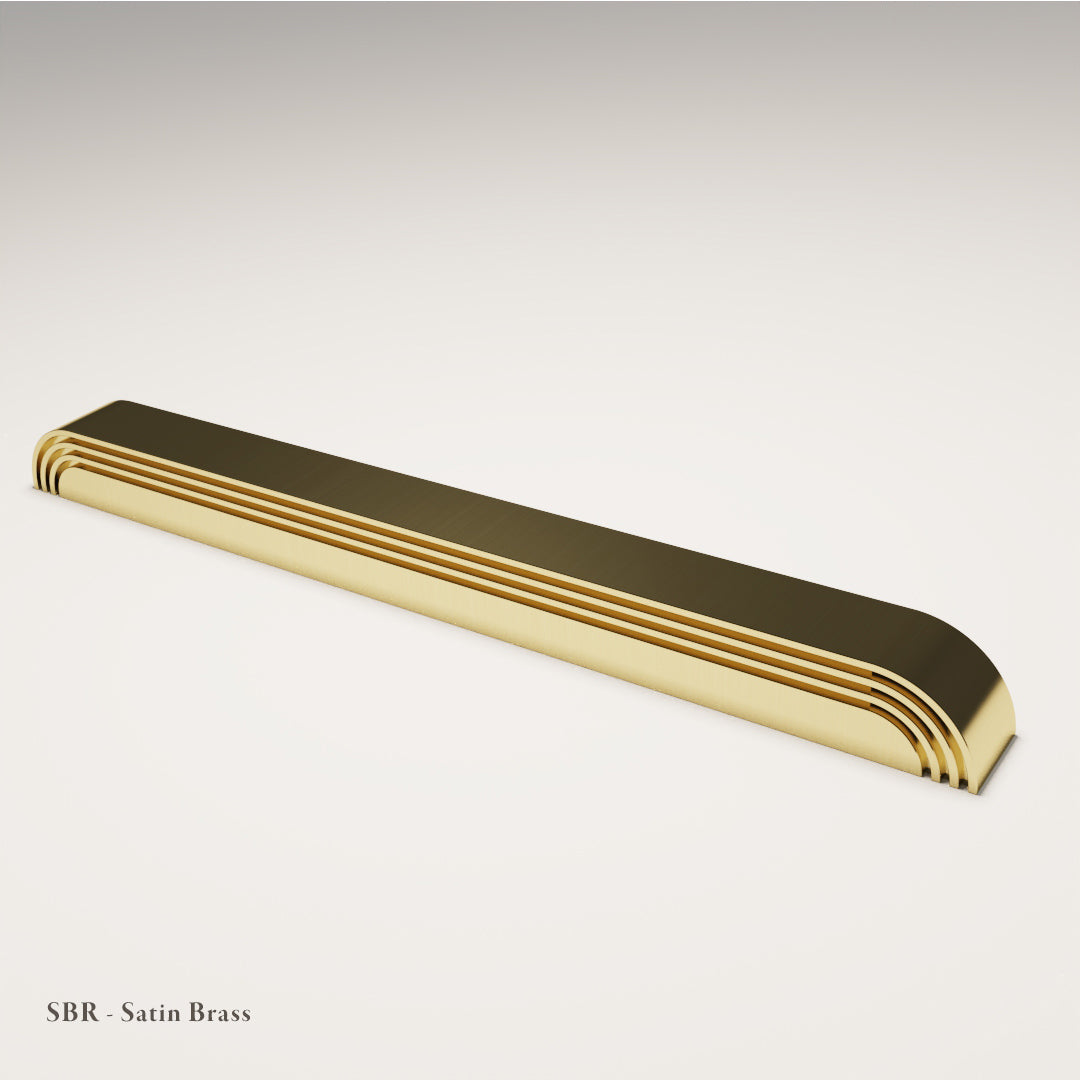

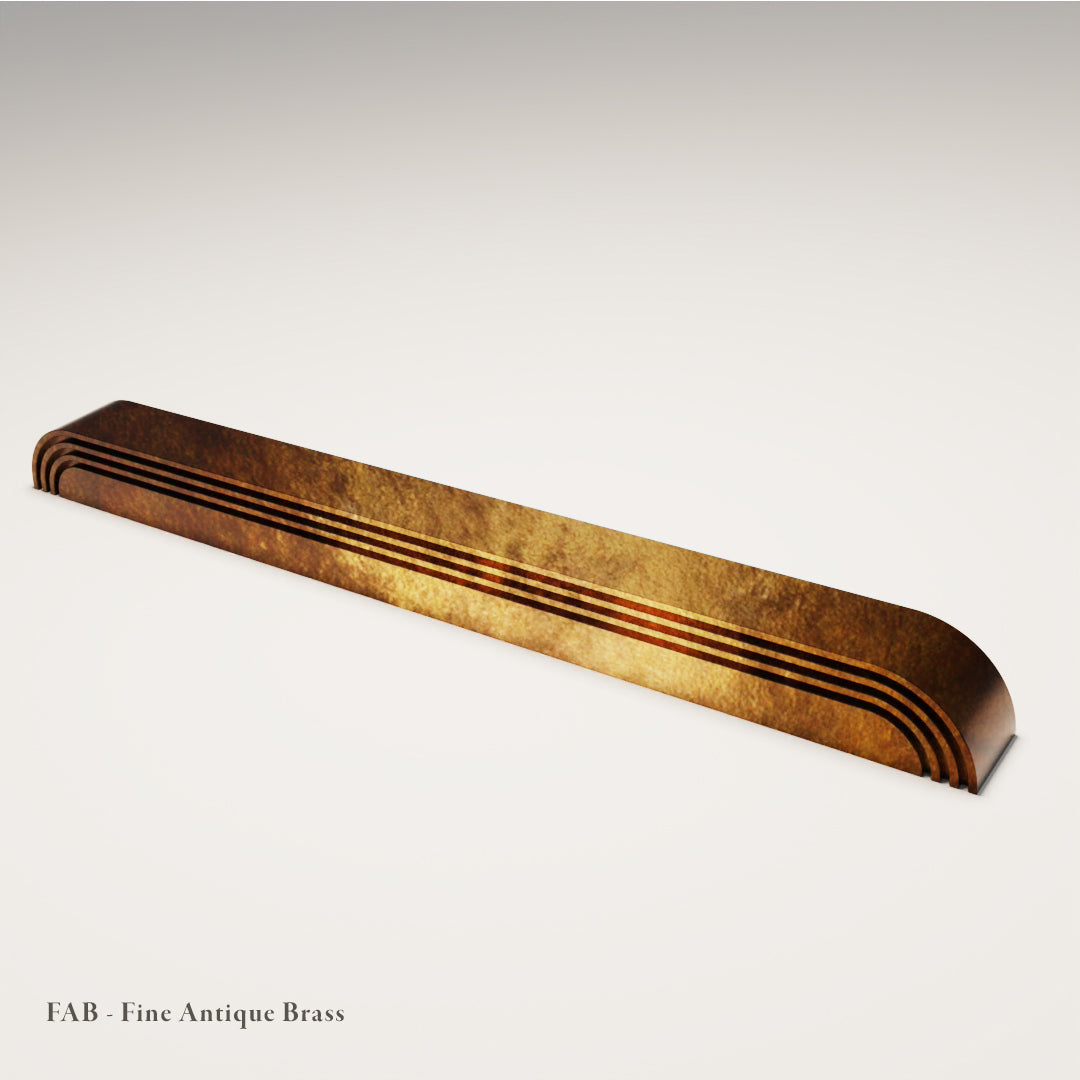

Heritage offers patinated, darkened and satin finish routes for this profile. Living brass finishes develop naturally with handling and environment; approve the physical finish reference before production for project consistency.

Project-performance route

Hotels, yachts, coastal homes & demanding interiors

If this design is being specified for hotels, coastal homes, yacht interiors, humid rooms, high-use cabinetry or another demanding environment, use the corresponding Atelier Performance Materials product to select the material around the project conditions.

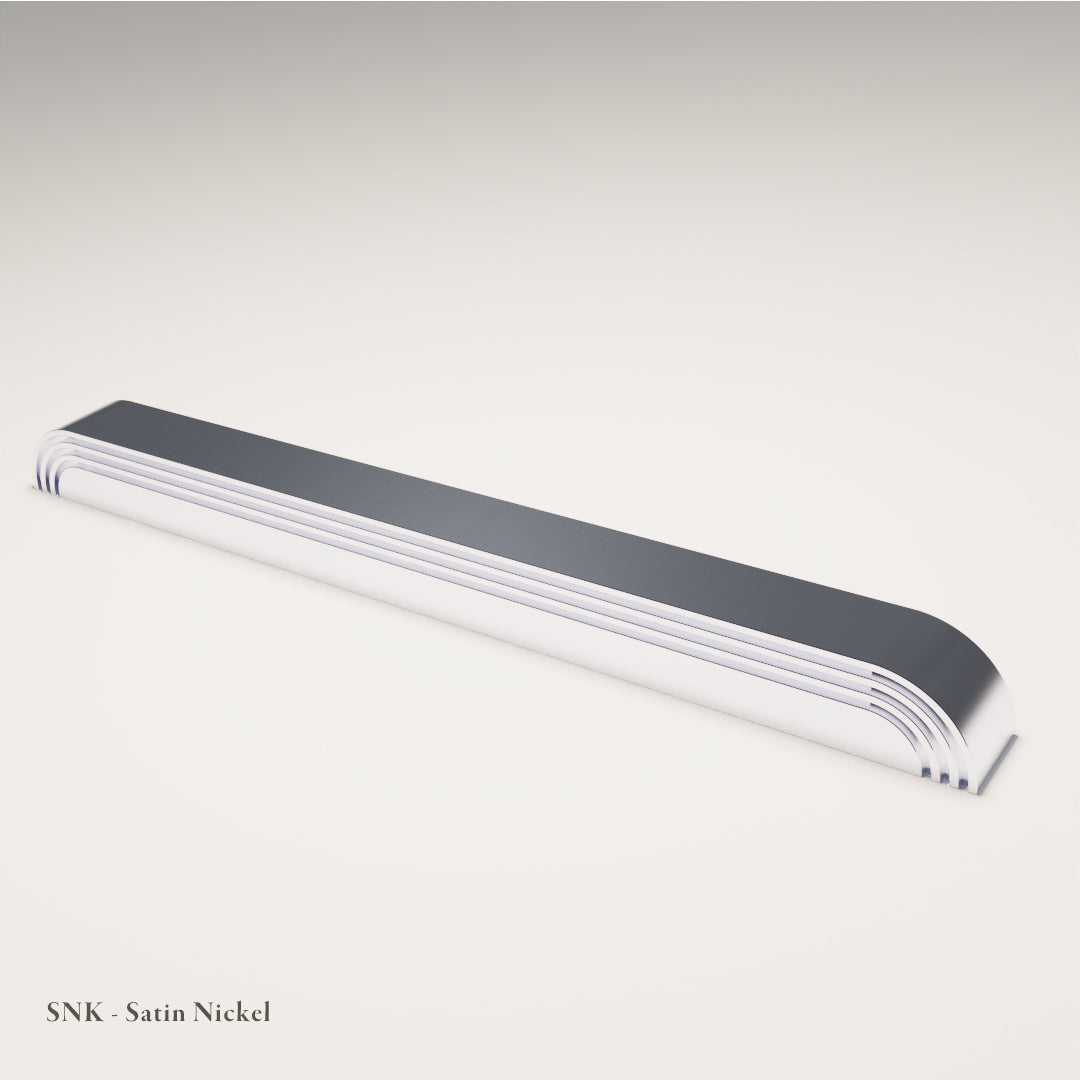

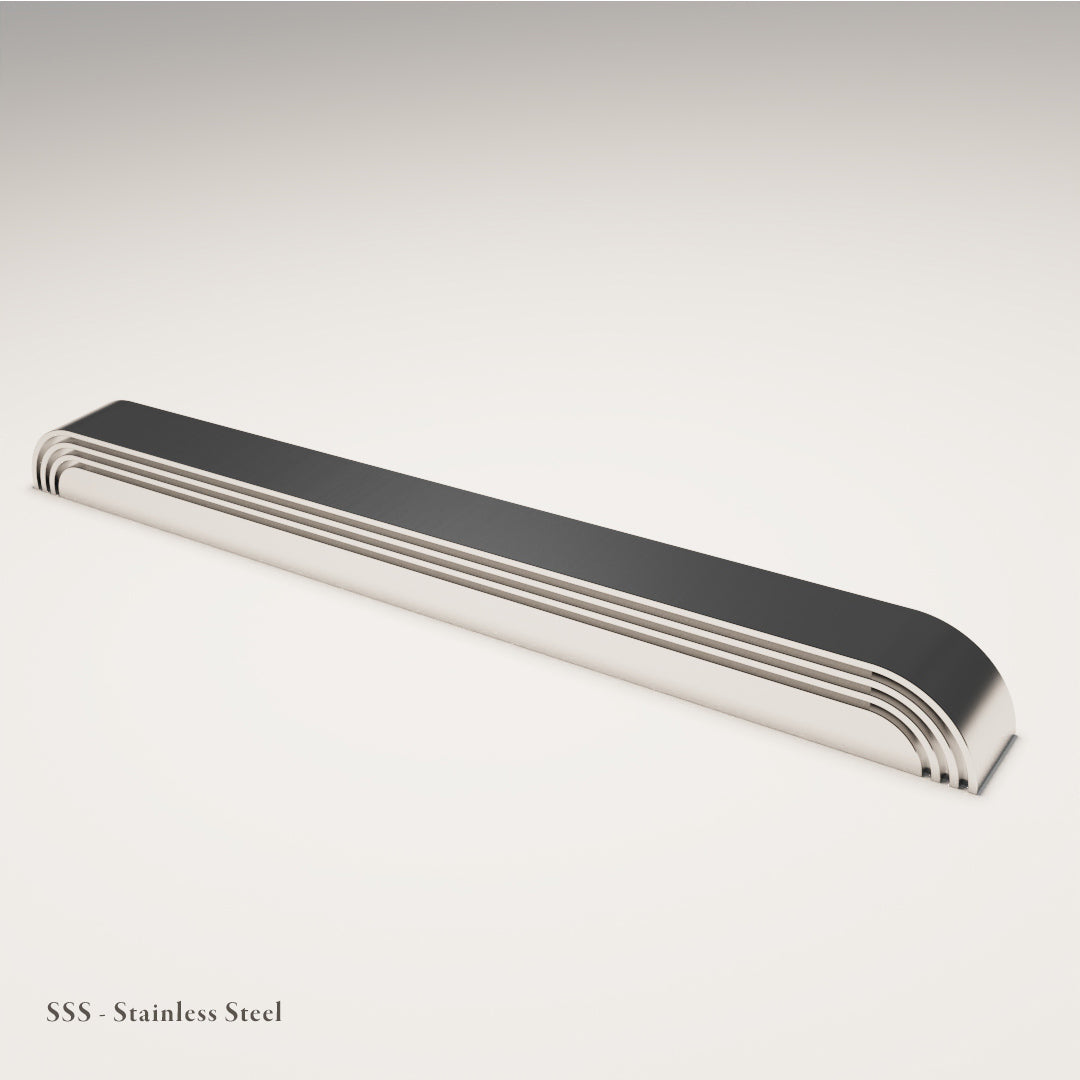

Atelier materials available for this design: Satin Nickel, Powdercoat Black and Stainless 316L

Capramont can review drawings, quantities, fixing conditions, cleaning requirements and the intended environment before production. Project suitability remains application-specific.

Suitable applications

Kitchen cabinetry
Pantry, utility and boot-room cabinetry
Wardrobes and bedroom cabinetry
Dressing-room joinery
Media units and living-room joinery
Home bars and games-room cabinetry

Hotel & hospitality applications

This cabinet handle can be specified for hotel guestroom wardrobes, suite cabinetry, minibar casegoods, vanity cabinetry and other hospitality fitted joinery where the selected size, projection and fixing conditions suit the approved drawings.

For repeated guestrooms, suites or wider project packages, coordinate the product, fixing centres where applicable, finish, quantity and spare requirement through the approved hardware schedule before production.

Where frequent cleaning, repeated handling, humidity or another performance requirement is important, review the corresponding Atelier Performance Materials version before sign-off.
