Heritage solid-brass specification

Specification

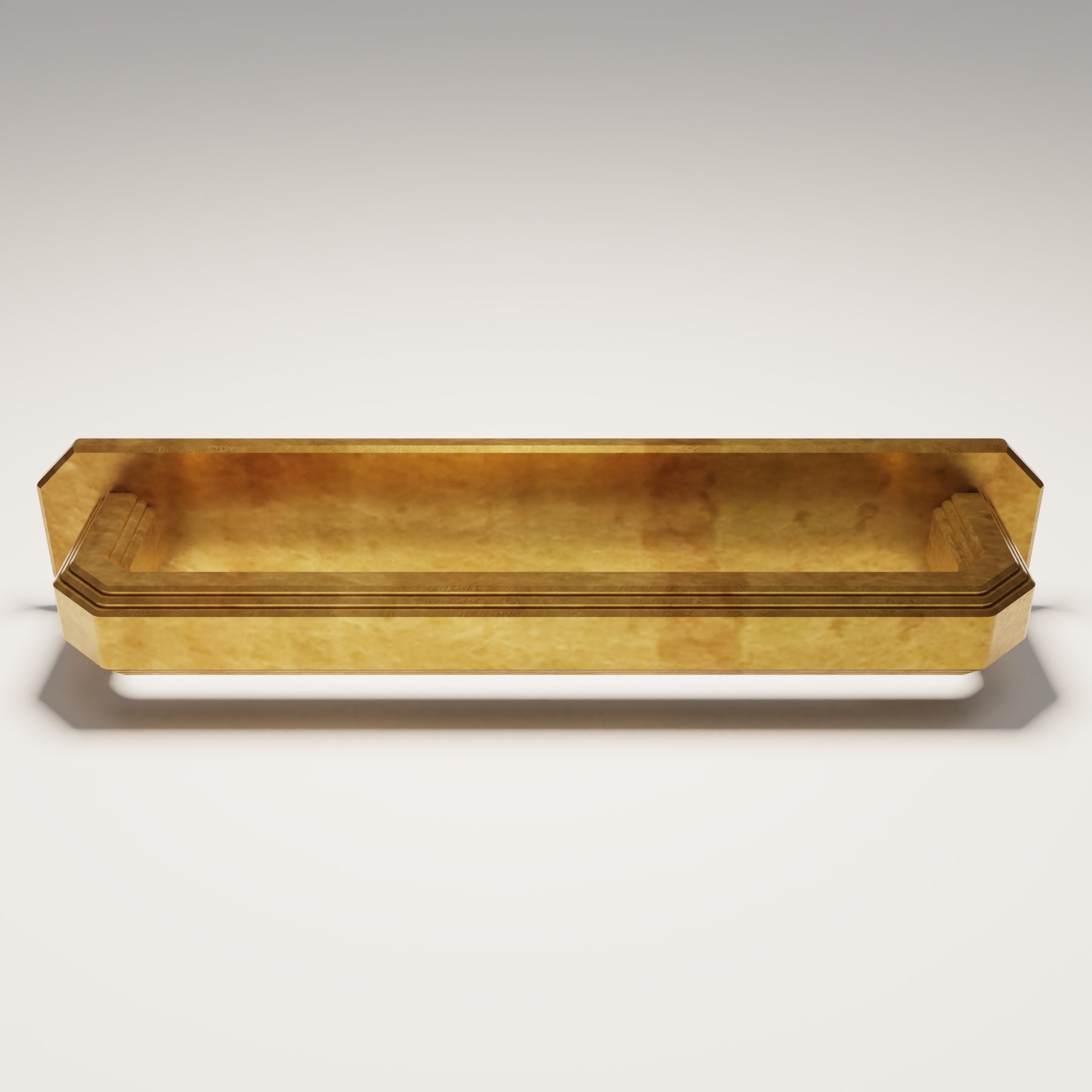

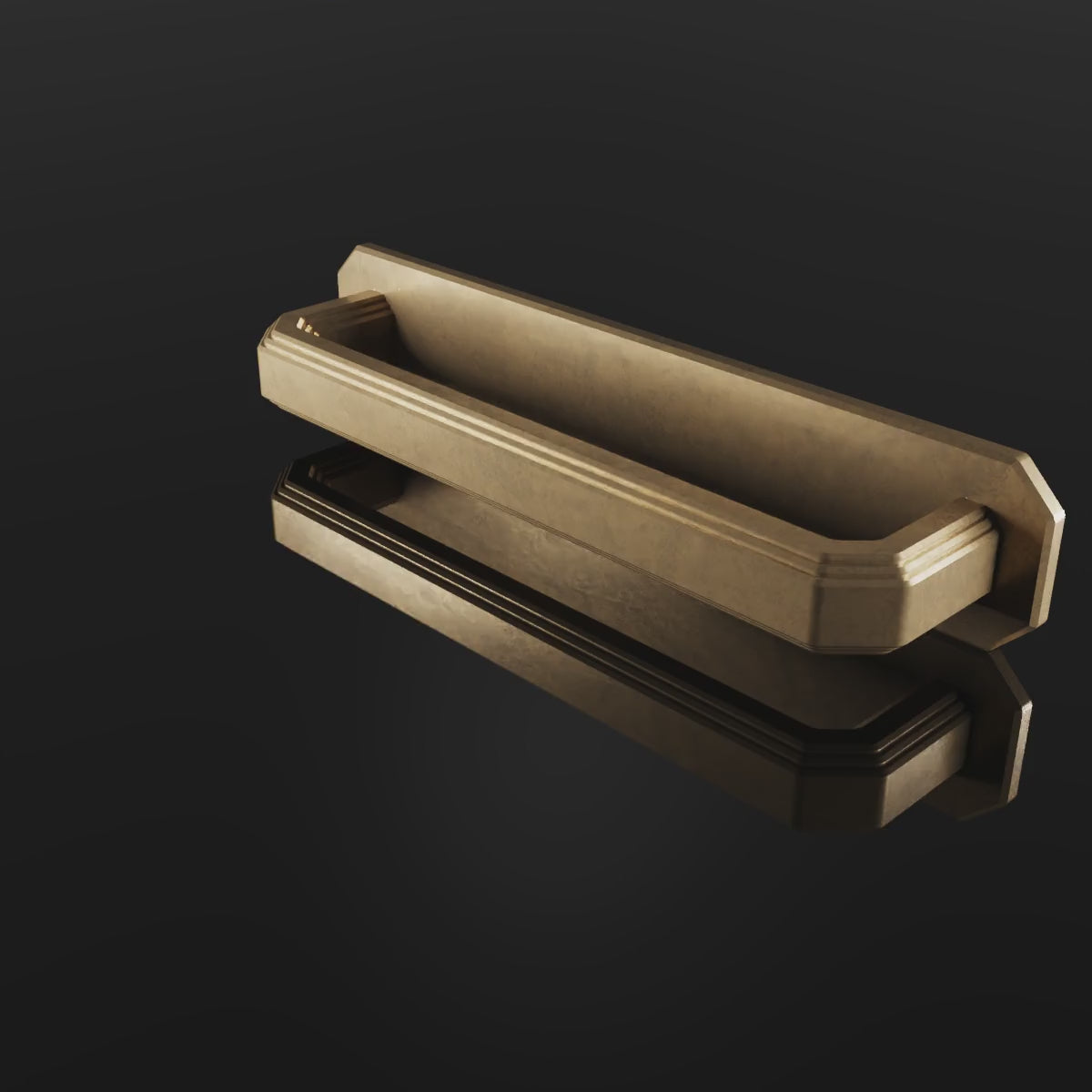

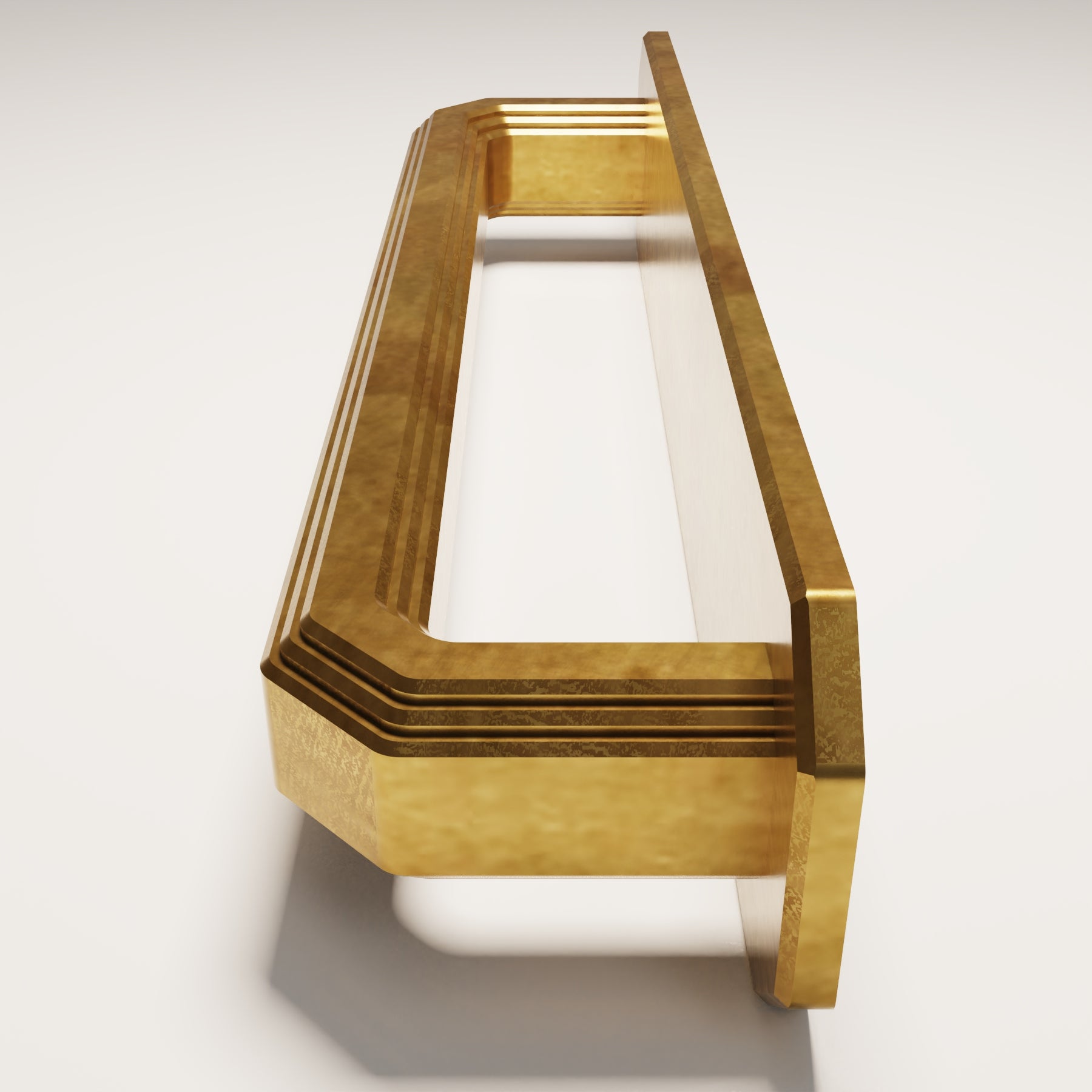

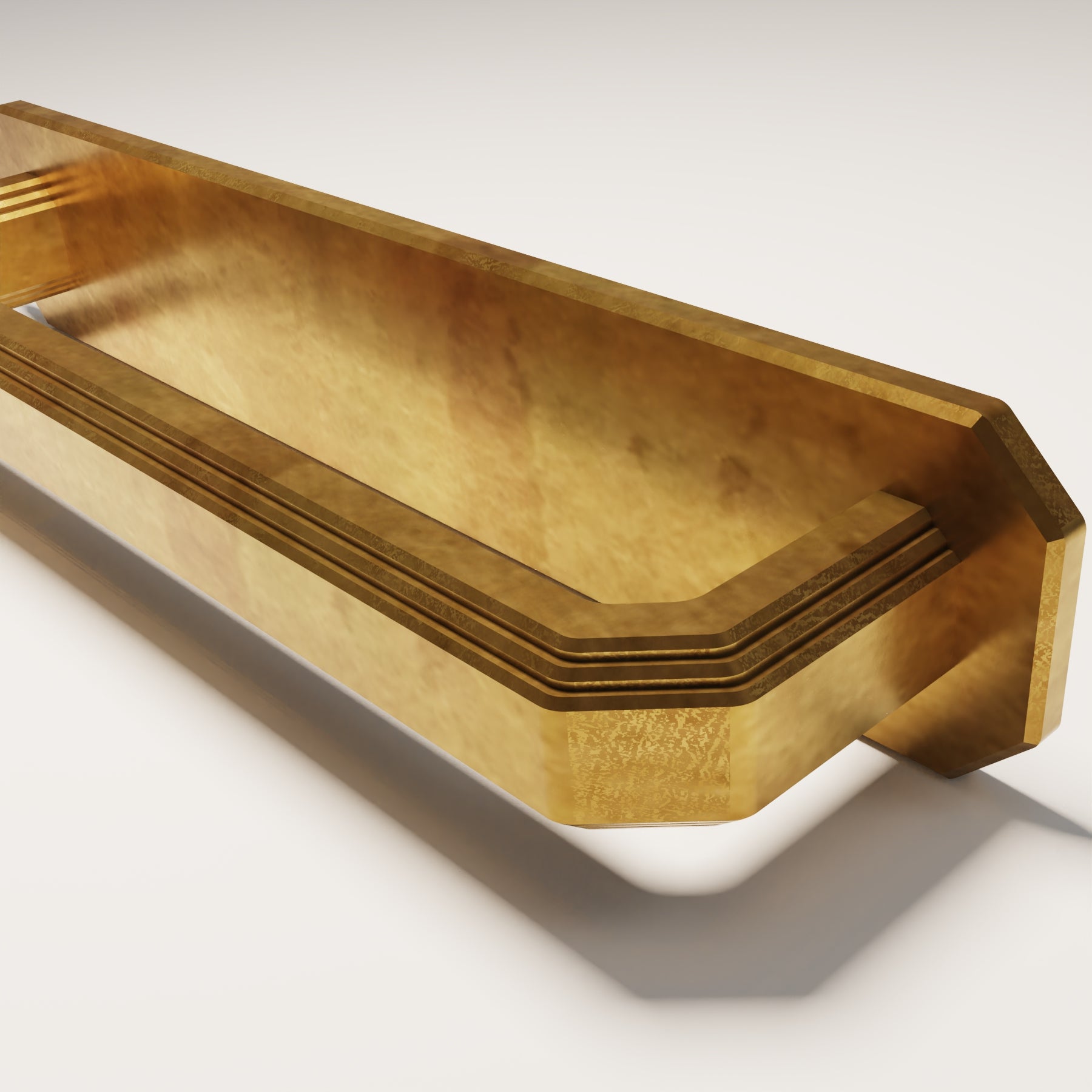

Manufactured by Capramont & Co in England, the Egerton Handle with Baseplate - P1B is a cabinet handle for slab, slim-frame shaker and fluted / ribbed fronts. Available in 7 size options, with centres of 92, 124, 156, 220, 284, 364 and 604 mm and overall lengths of 104, 136, 168, 232, 296, 382 and 622 mm. Heritage finish and selected Atelier material routes are available. Projection, section and detailed fitting dimensions are provided in the linked technical sheet.

Egerton Handle with Baseplate - P1B is made to order in England in solid brass for kitchens, wardrobes, whole-home joinery, hospitality and bespoke fitted interiors.

Confirm sizes, fixing centres where applicable, projection, finish, quantities and fixing conditions within one approved specification before production.

For hotels, coastal homes, yacht interiors, humid spaces, high-use joinery or other specialist material requirements, review the corresponding Atelier Performance Materials version.

Available sizes

104 mm overall / 92 mm centres
136 mm overall / 124 mm centres
168 mm overall / 156 mm centres
232 mm overall / 220 mm centres
296 mm overall / 284 mm centres
382 mm overall / 364 mm centres
622 mm overall / 604 mm centres

Projection

37 mm for the 92 mm and 124 mm centre sizes; 41 mm for the 156 mm, 220 mm and 284 mm centre sizes; 54 mm for the 364 mm and 604 mm centre sizes.

Bar section

12 × 12 mm for the 92 mm and 124 mm centre sizes; 15 × 15 mm for the 156 mm, 220 mm and 284 mm centre sizes; 18 × 18 mm for the 364 mm and 604 mm centre sizes. Baseplates: 116 × 24 mm for the 92 mm centre size; 148 × 24 mm for the 124 mm centre size; 186 × 36 mm for the 156 mm centre size; 250 × 36 mm for the 220 mm centre size; 314 × 36 mm for the 284 mm centre size; 400 × 36 mm for the 364 mm centre size; 640 × 36 mm for the 604 mm centre size.

Fixings

Rear-fix; M5 machine screws supplied (M6 appliance screws where required). Confirm cabinet-front thickness and final screw length before installation.

Material

Solid brass

Origin

Made to order in England

Lead time

Heritage finishes are typically made to order in 4–6 weeks after specification and finish approval. Custom requirements are confirmed individually; Atelier materials are typically 6–8 weeks. Courier transit is additional.

Technical documents

Download A4 technical sheet

Heritage materials & finishes

This product page covers the Heritage specification: precision-machined solid brass with a decorative finish selected for its visual character and approved before made-to-order production.

For a coordinated kitchen, wardrobe, whole-home or hospitality schedule, approve the physical finish reference across the complete hardware package before manufacturing begins. Natural variation and the way a finish develops in use should form part of the design decision.

Heritage

Base material: Solid brass

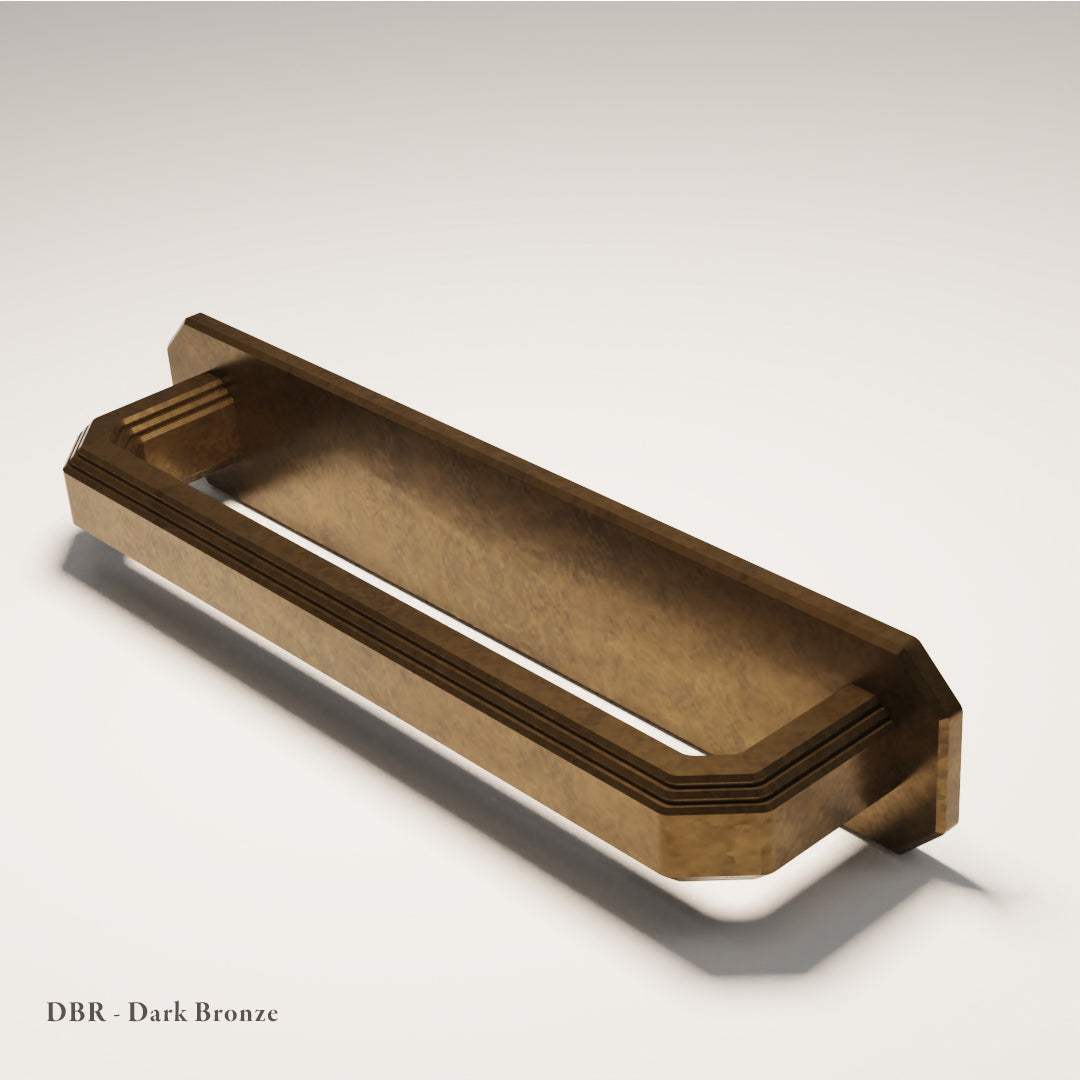

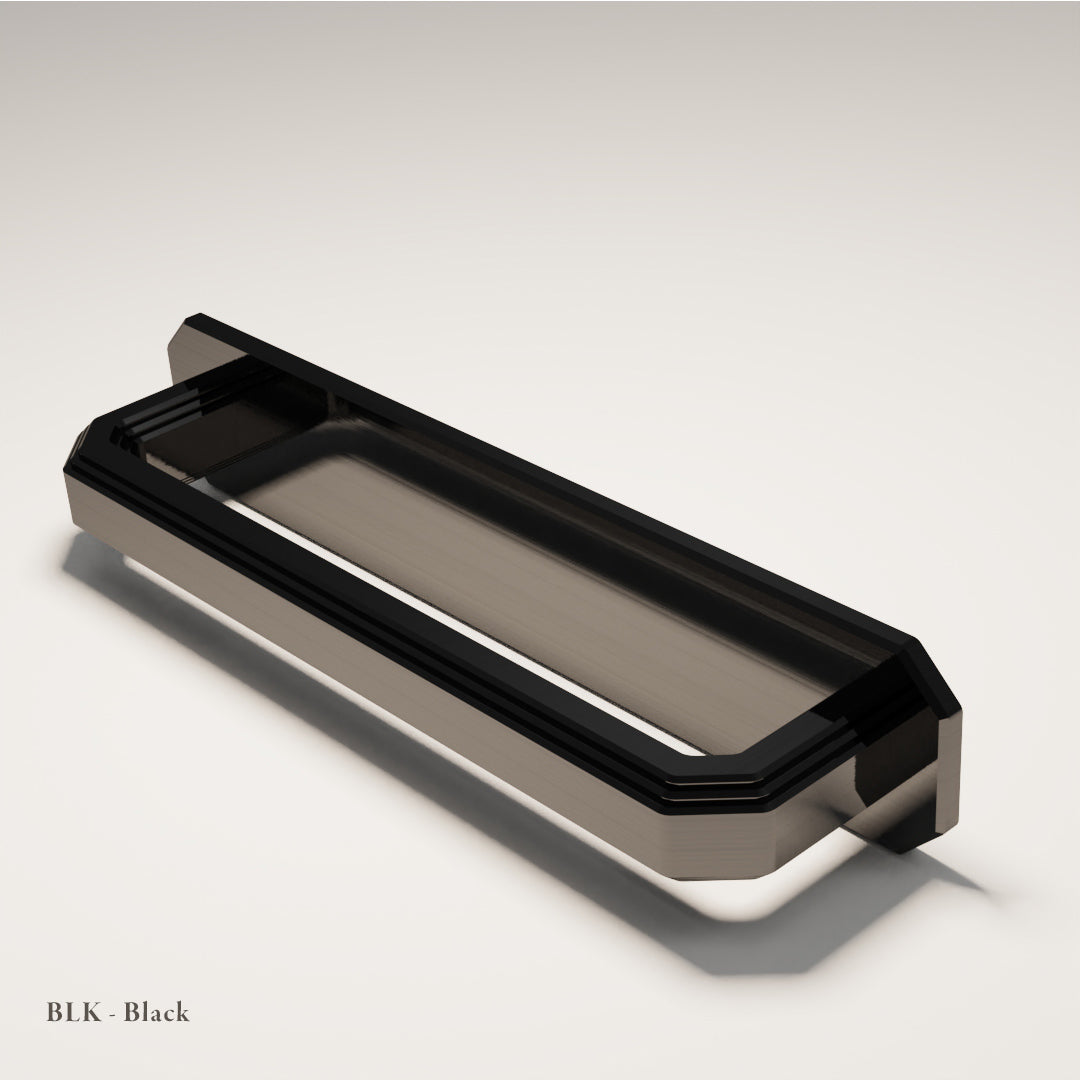

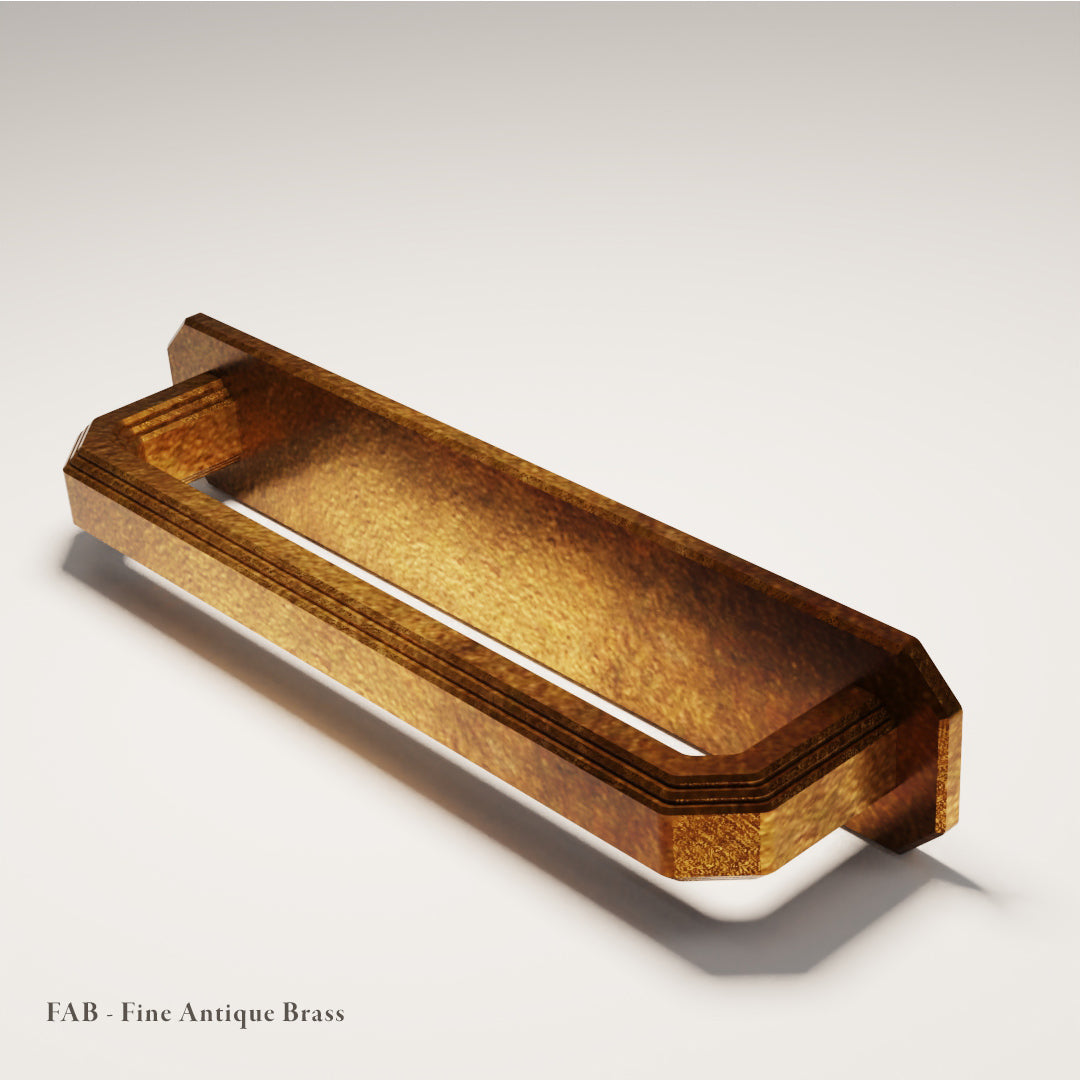

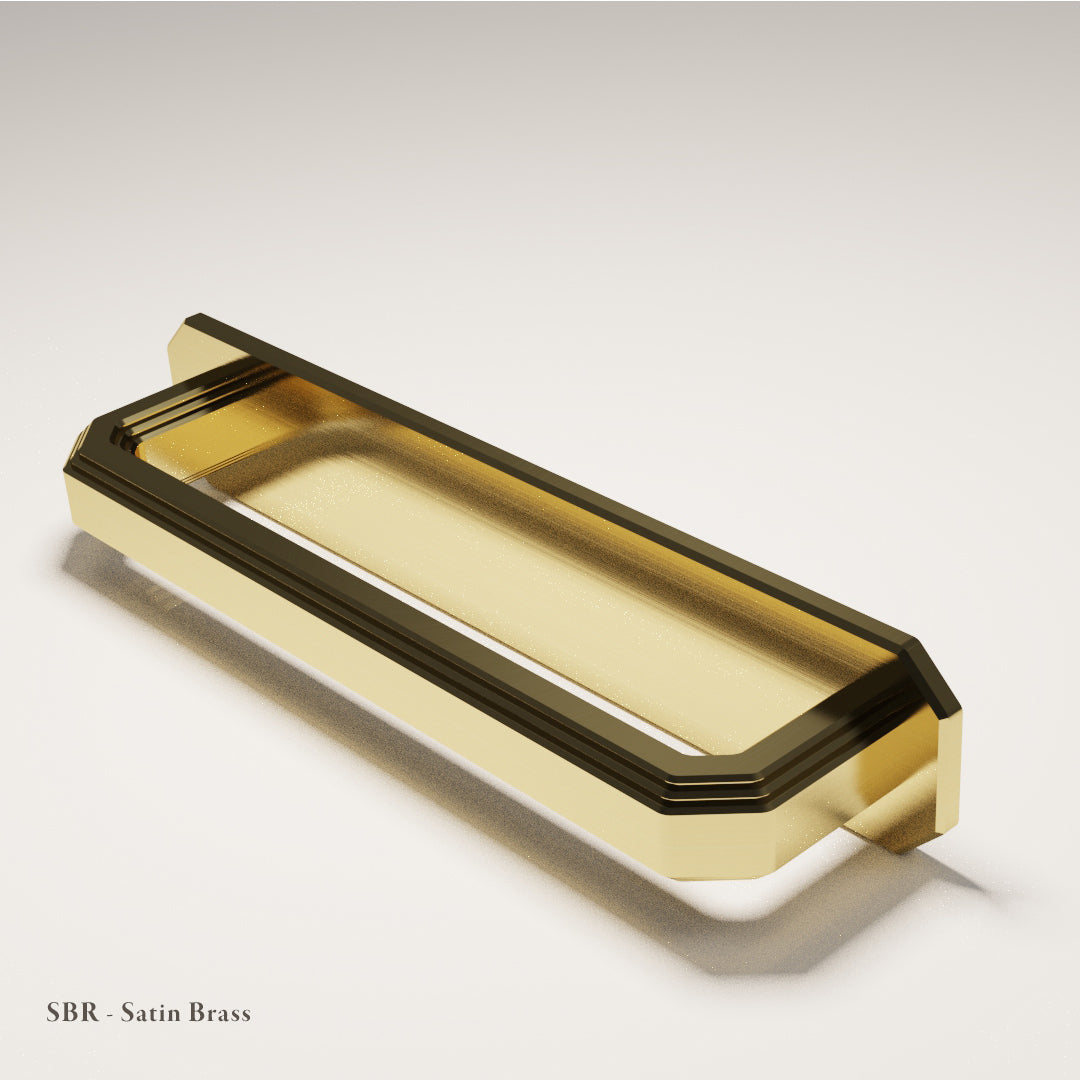

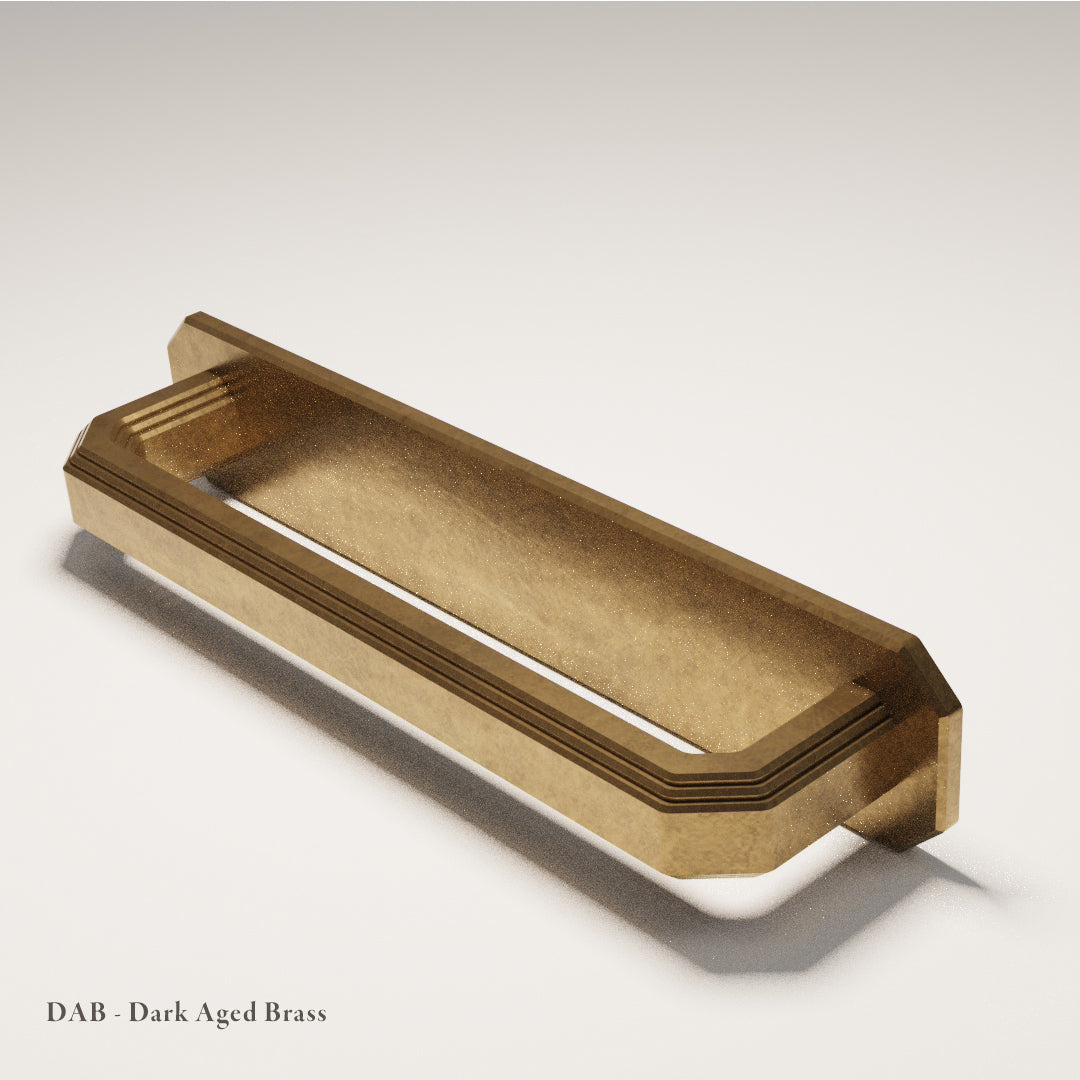

Heritage offers patinated, darkened and satin finish routes for this profile. Living brass finishes develop naturally with handling and environment; approve the physical finish reference before production for project consistency.

Order a finish sign-off sample View materials and finishes

Project-performance route

Hotels, yachts, coastal homes & demanding interiors

If this design is being specified for hotels, coastal homes, yacht interiors, humid rooms, high-use cabinetry or another demanding environment, use the corresponding Atelier Performance Materials product to select the material around the project conditions.

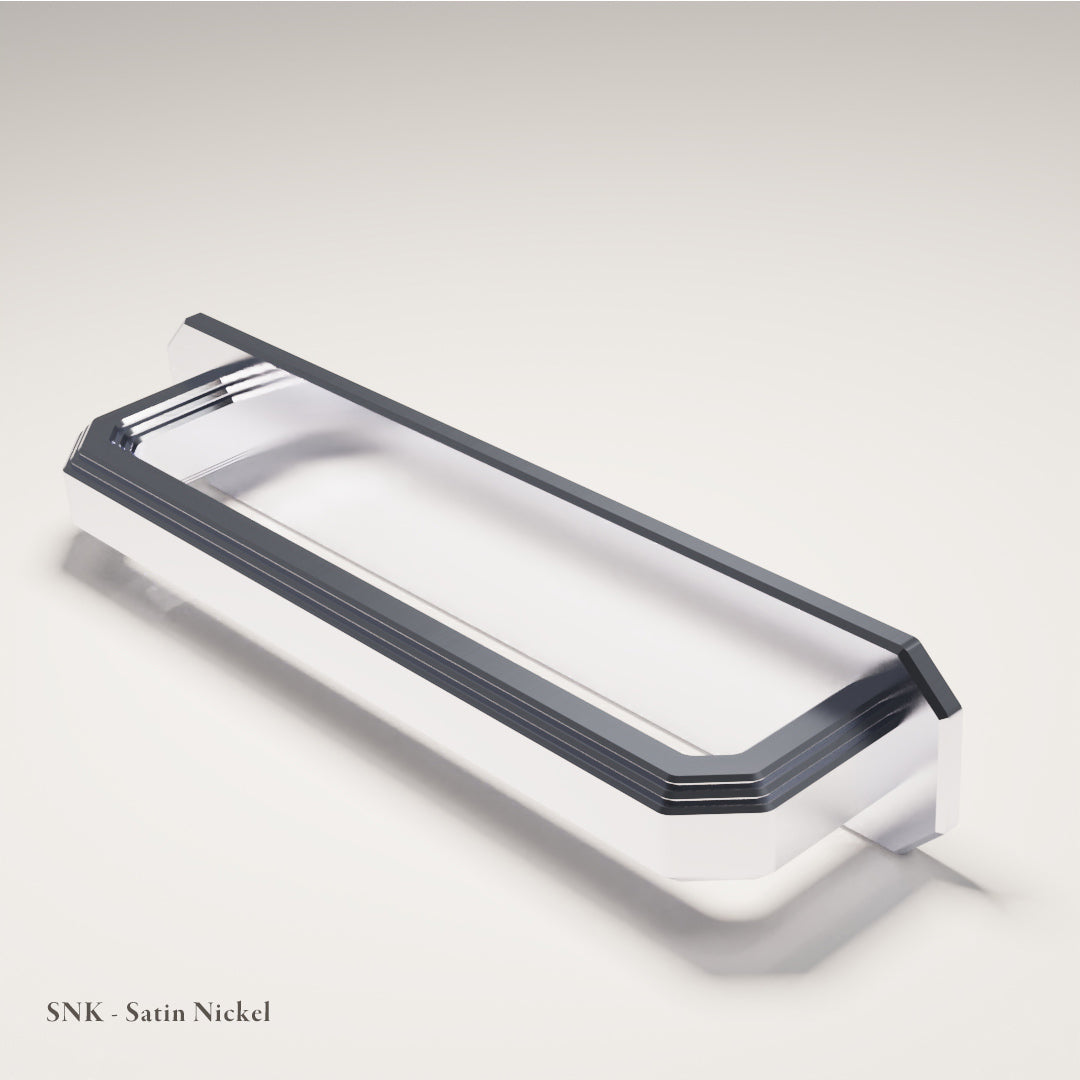

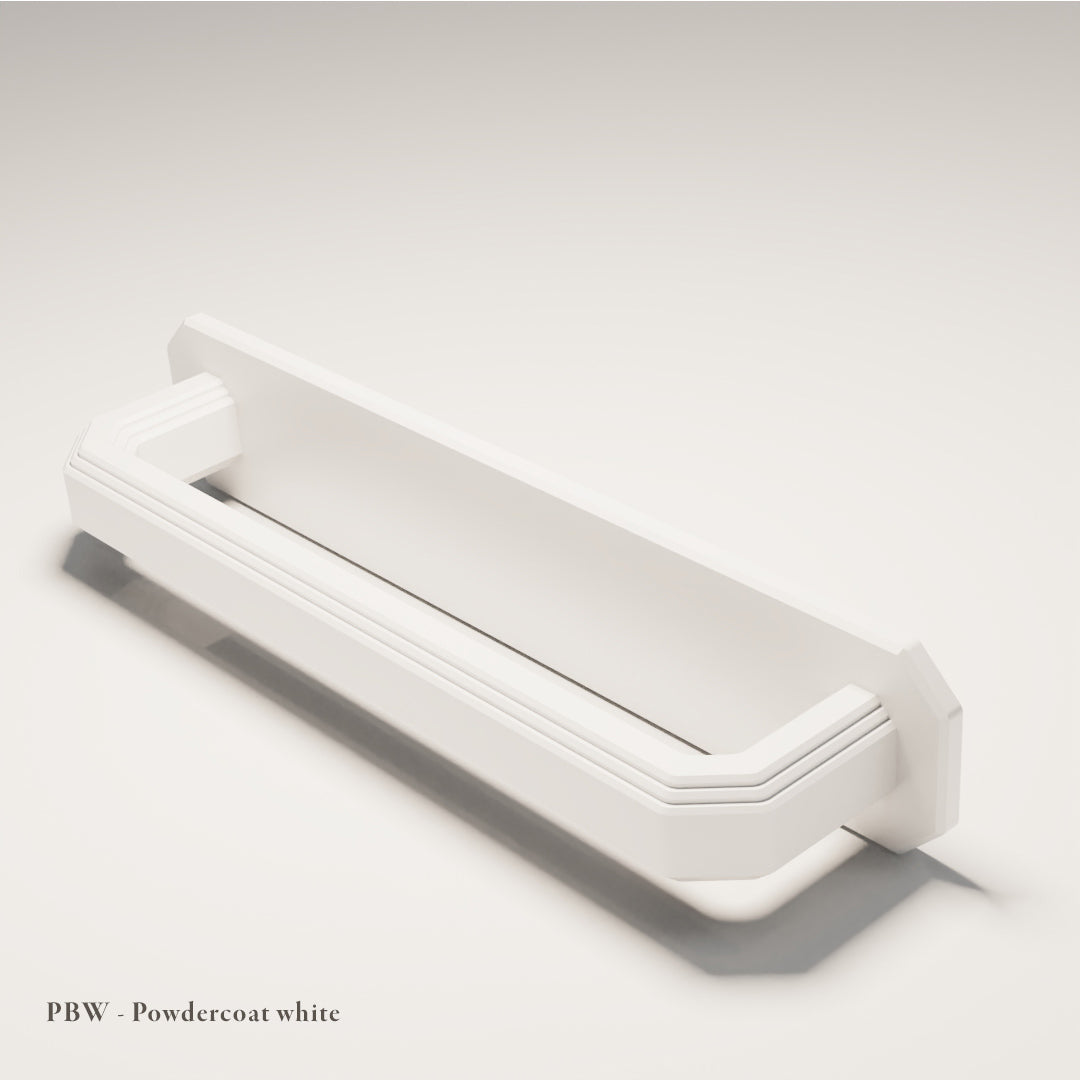

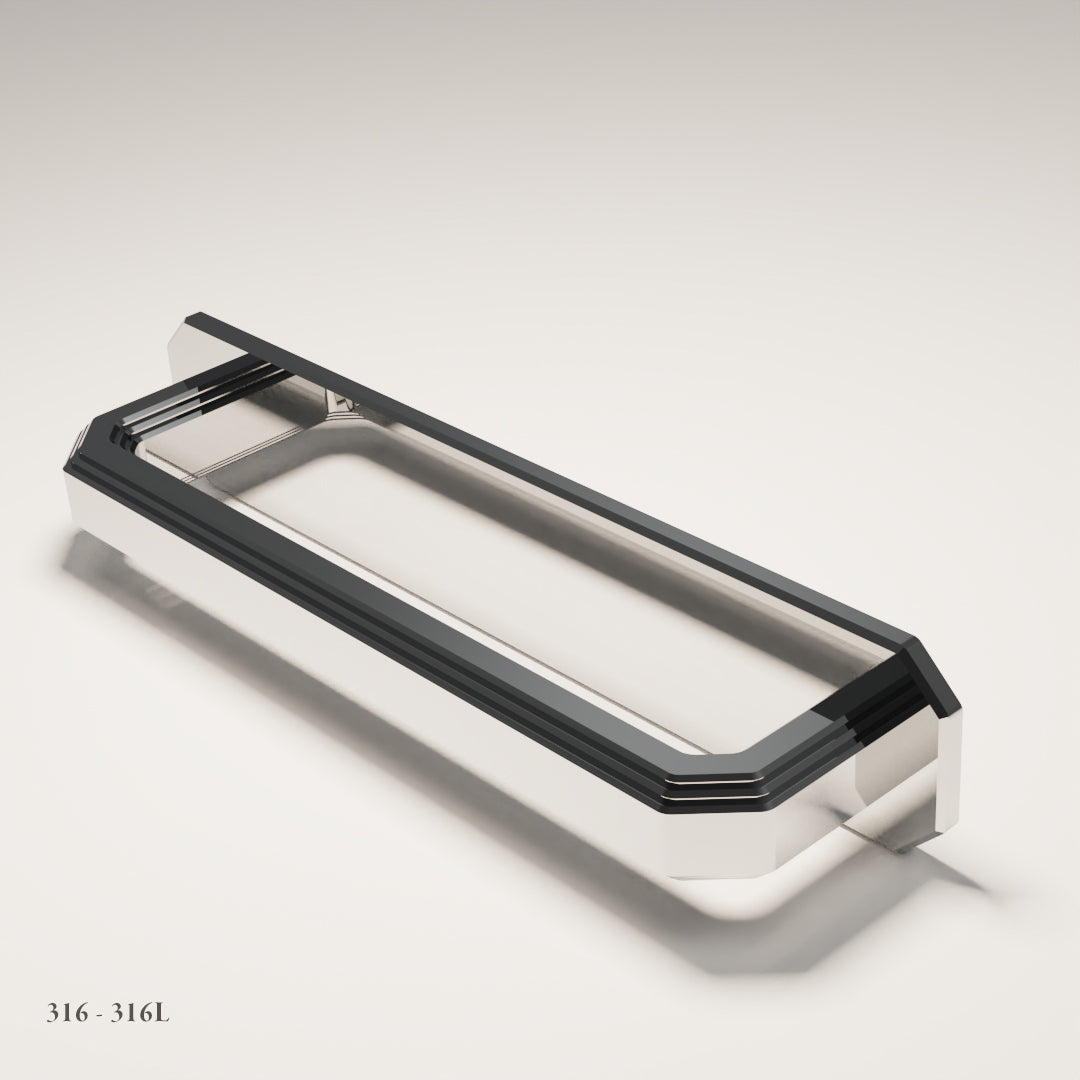

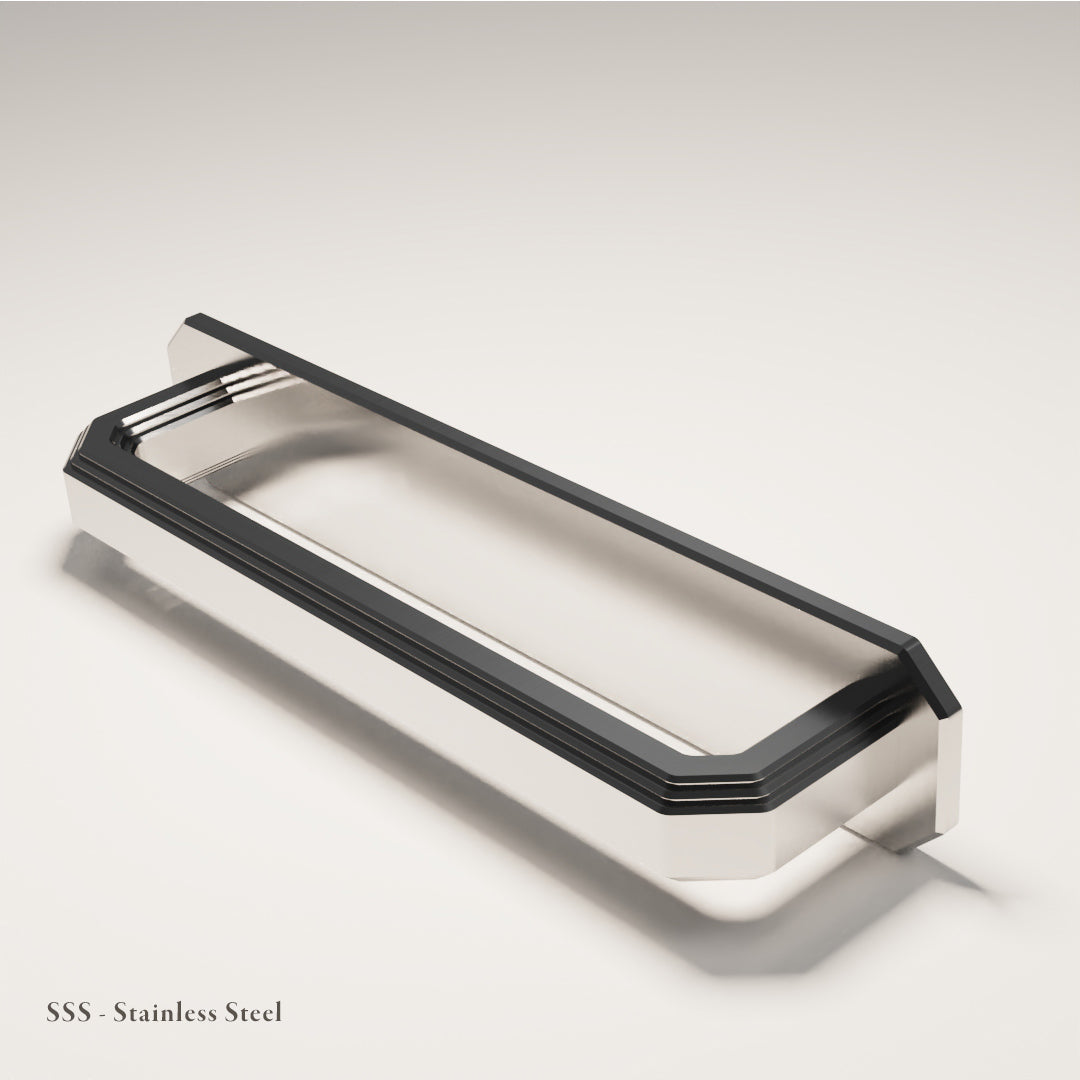

Atelier materials available for this design: Satin Nickel, Powdercoat White, Naval Brass and Stainless 316L

Capramont can review drawings, quantities, fixing conditions, cleaning requirements and the intended environment before production. Project suitability remains application-specific.

View this design in Atelier Performance Materials Hotel, hospitality & high-use project guidance Yacht interior project guidance Send a drawing or hardware schedule

Suitable applications

Kitchen cabinetry
Pantry, utility and boot-room cabinetry
Wardrobes and bedroom cabinetry
Dressing-room joinery
Media units and living-room joinery
Home bars and games-room cabinetry
